Compact Air Suspension Compressor: Verify Fit Beyond the Pump Body

In addition to being small, there are other important attributes that a compact air suspension compressor must possess. It needs to mate with the vehicle's suspension system, have no hoses or wiring that is stretched, and provide the output needed for the original suspension system. A smaller sized pump will not necessarily be appropriate.

The compactness should be used as an installation requirement and not a product claim for workshops and parts buyers. This document provides an instruction on how to properly evaluate the entire installed assembly, how to ask for dimensionally useful data and how to approve a replacement without a loss of compatibility or service access.

Explain what is meant by Compactness Against Original Installation.

Start with the suspension system of the vehicle in its original factory set-up. In an existing-system repair, the goal is typically to get back to the design that was originally planned, not to create a new design based on the smallest compressor available.

HUIJIE's air suspension compressor line includes replacement compressors designed for particular vehicles. Before comparing physical arrangements, apply the correct application and original reference to shortlist candidates.

Clearly state the constraint. It could be the adjacent cover, restricted access to connectors, blocked outlet for air or another assembly that is not the same as the assembly removed. The supplier's evidence will vary for each problem.

A compact air suspension compressor should therefore be assessed based on an installation space. Without that reference “compact” isn't really a good indicator of whether or not the workshop can install, connect and then later service the component correctly.

Measure Full Assembly, NOT Shipping Carton

Product dimensions, installed dimensions and package dimensions are all different aspects. A shipping carton measurement does not designate how much space the compressor will occupy in the vehicle – it is a measurement used in planning the transport.

The compressor listings on HUIJIE have a “Single package size” listing. Explicitly handle as packaging information. If it is important to know the installation envelope, ask for a dimensioned drawing of the product or confirmation of measurements, with the unit of measurement identified, and the specific assembly measured.

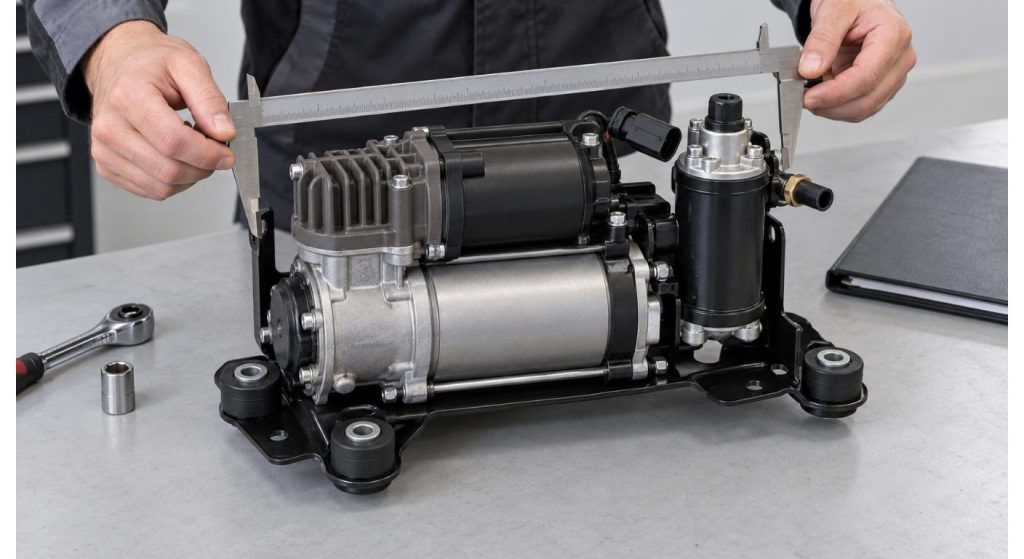

The envelope should be a representation of the configuration provided. The body of a pump itself might look smaller than an assembly that is fitted with a dryer, a bracket, a set of isolators, connectors, or a protective unit. Determine what's included and what's part of the original installation.

Find dimensions and positions of mounting and connection points. If access is limited, also mention the space required for connecting and disconnecting of the unit. Don't measure dimension of installations from a photo with a white background without a proven scale.

Requested Document	Required Identification	Supplier Response
Product outline drawing	Part reference and drawing revision	Provided / Pending
Mounting interface drawing	Datum and mounting-point locations	Provided / Pending
Connection detail	Connector and pneumatic interface identification	Provided / Pending
Supplied assembly image	Exact quoted configuration	Confirmed / Clarification needed
Dimensional approval	Reviewer and approval date	Approved / On hold

Don't Take a Smaller Footprint Without Checking Interfaces First

A replacement can take part in a similar area and exhibit connections in another way. Inspect connector orientation, outlet location, connector arrangement and existing lines and wiring runs. These details can make the difference between whether the installation is feasible.

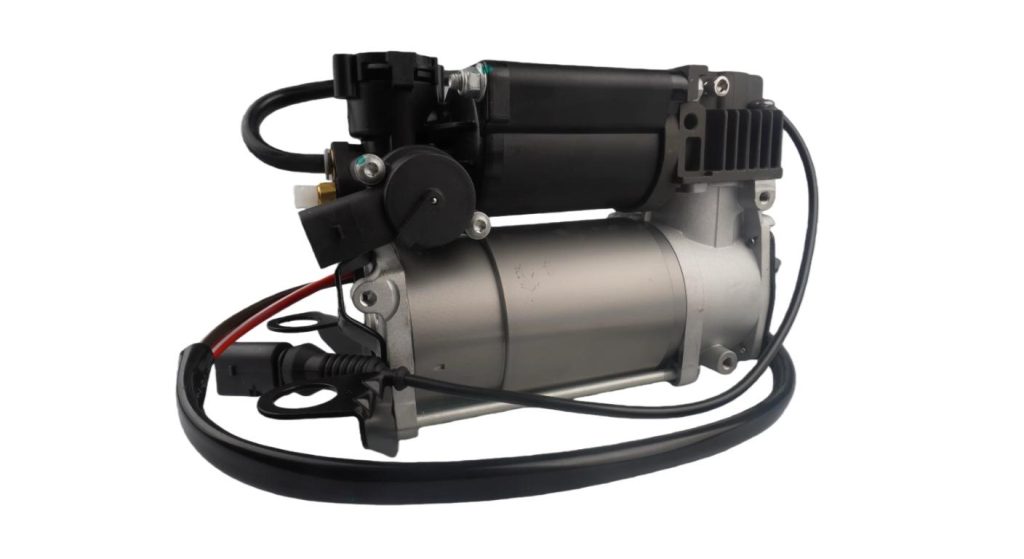

An example of an application specific replacement is the listing of HUIJIE's Audi A6 C6 compressors. An initial comparison using its product photograph is possible but the buyer shall verify the proposed reference/interface with the vehicle prior to approval.

Never rotate a pump, or change fittings or pump connections in an effort to force an unconfirmed replacement. Any change from the original design requires a suitable installation procedure and/or engineering review.

If you are making a supplier enquiry, be sure to include clear pictures of the original assembly, and the assembly once it has been removed. Supply the label and connection information so that the supplier can see the issue without having to guess from the name of the make and model of the vehicle.

Include Mounting and Isolation in a Fitment Review

The mounting system is part of the usable area of the assembly. The pump housing should be taken into account along with the geometry of the brackets, the positions of mounting points and vibration isolators. A dimensionally similar motor is not a guarantee of a complete fit of the motor.

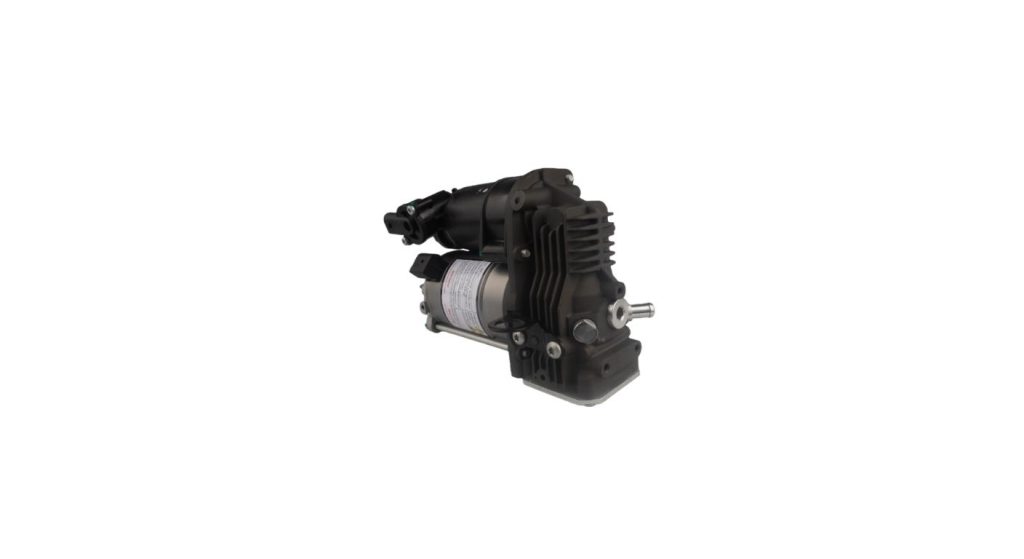

HUIJIE also includes a Mercedes-Benz W166/X166 suspension pump, which is vehicle specific, too. Check the provided bracket configuration and validate the condition and use-ability of any brackets that are to be reused.

Please refer to the relevant instructions for where to put the isolator and how to assemble the hardware. An isolator or a bracket should not be removed or changed to provide clearance. This would require evaluation outside of the normal replacement parts control process.

Be sure to have the original installation information on hand while comparing. It is useful in indicating if the assembly is actually different or merely a complete assembly with its mounting hardware omitted from the photo.

Maintains Performance Within the Allotted Space

It is not the only condition for acceptance: physical fit. The compressor must also meet the needs of the vehicle for air and electricity. That combination can't be made with a small housing, or low advertised noise or high maximum pressure alone.

Request the data on the exact replacement reference that is available in the performance section. Here are some of the relevant questions: what is the output with such conditions, what is the electrical demand, under what conditions is it allowed to operate, or are there any restrictions on installation. Use a comparison to the application requirements, NOT to other compressor ads.

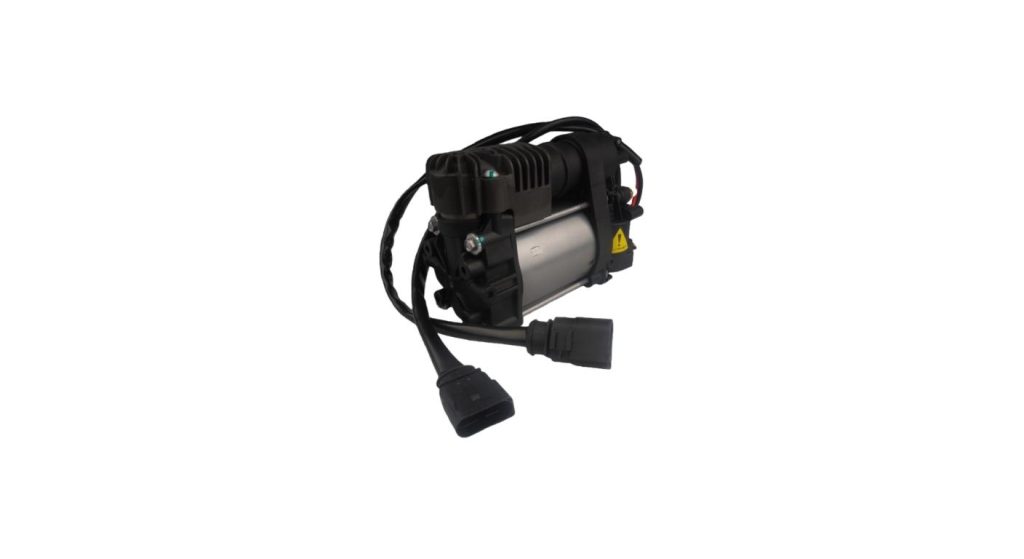

Another example of use is found in the Porsche Panamera 970 compressor listing created by HUIJIE. It should not be assumed that it will be suitable because it looks similar to a different pump or because of its proportions but should be determined by reference matching and product information.

The original operating environment of the vehicle is also of great importance. Maintain the approved mounting location, protective measures and routing unless otherwise specified in an approved procedure. Don't assume that a more compact installation or moving the pump will make it a better installation simply to save the use of visible space.

Agree on Supplied Configuration Prior to dispatch

Form an enquiry consisting of vehicle identification and space constraint. Describe if the concern is in the body, bracket or connection direction or access. Ask for confirmation of the precise unit which is to be sent.

List the included and transferred parts and list separately those that need to be purchased. Quotes with the same compressor name, but different hardware should not be considered the same quote, as a bare compressor quote is not the same as one with hardware.

Request the supplier to state any variations from the picture or the approved sample. Dimensional information should not be incomplete, nor should the fitment decision be made and made an accepted specification, if it is incomplete.

If the customer reorders, keep the set-up of the order record. If there is a change in the bracket, connector or provided contents, this may necessitate a second fitment review despite the fact that the headline product description may not have changed.

Proposed Change	Review Evidence	Release Status
Bracket revision	Updated drawing and application confirmation	Approved / Pending
Connection revision	Interface comparison	Approved / Pending
Included-parts change	Revised contents list	Approved / Pending
Alternative replacement reference	Written compatibility confirmation	Approved / Pending
Revised supplied assembly	Updated approval record	Released / On hold

Confirm Installed Result - Before Handover

Upon receipt, verify contents and any component against the approved reference and contents prior to installation. Let a qualified technician follow the vehicle/replacement part procedures which may involve system preparation and initialization.

Make sure that the assembly is safely installed in place and that connections and protective components are reinstated in accordance with instructions. Perform appropriate functional tests – physical clearance is not indicative of successful replacement.

Document any discrepancies prior to vehicle release. The product documentation and workshop checks are the evidences needed for the specific installation, which are provided by HUIJIE's factory gallery to show the context of the manufacturing.

Conclusion

When selecting a compact air suspension compressor, it's important to ensure the entire installation, not look for the smallest housing. Differentiate between packaging size and product size, ensure interfaces and mounts, maintain application performance. A "replacement" is considered compact if it fits and operates properly in the vehicle it is intended for.

FAQs

Q1. Does compact imply compact car friendly?

No. The term is only meaningful in terms of its context. Verify vehicle application and provided assembly.

Q2. Are package sizes able to verify installation clearance?

No. They tell about the package that the goods are shipped in. Ask for product dimensions and/or drawing for installation assessment.

Q3. Which compressor is quieter, smaller or larger?

Not necessarily. Noise is a factor dependent upon installation and operating conditions. Do not infer performance from size; ask for relevant evidence.

Q4. Is it possible to use the same mounting bracket?

Where replacement instructions indicate it, and the bracket is appropriate. Please check the complete installation before placing an order.

Q5. What to include in a limited space query?

Give vehicle information, the reference you are using, pictures of the set up, and the clearance issue. Ask for validation of all the provided configuration.
